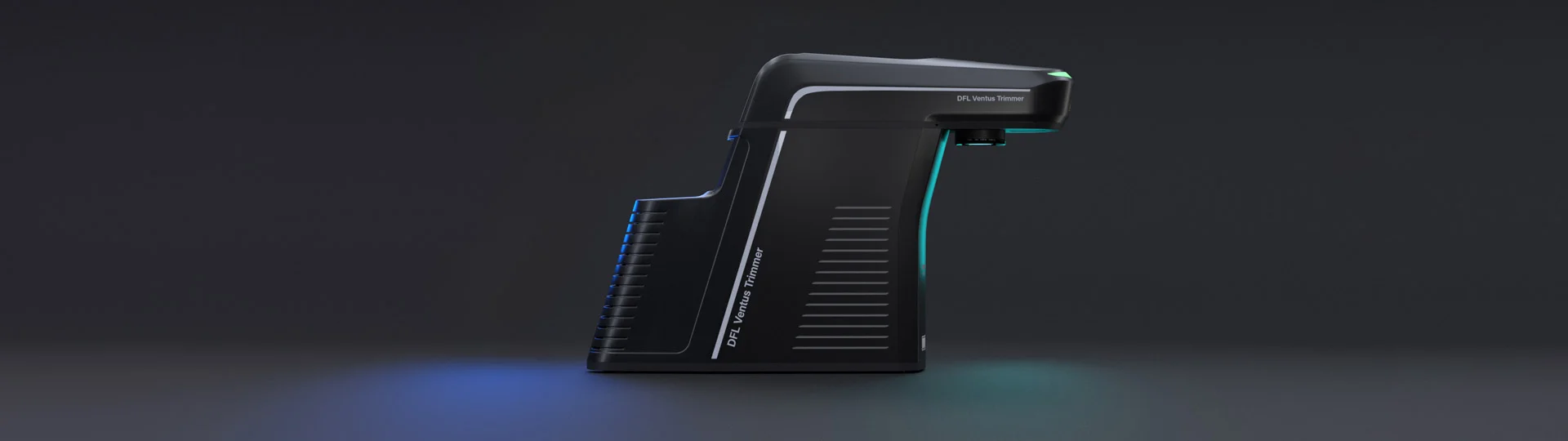

Laser trimmer DFL Ventus Trimmer from ACI for calibrating electronic resistors

User-friendly and compact

Laser trimmers

Powerful, efficient systems

Laser for trimming electronic resistors

The tolerances of electronic components and strict criteria in terms of precise switching or response distances of sensors require individual adjustment and setting options. Laser trimmers from the Business Fiber TRIM product series are appropriately adapted fiber lasers that meet these high quality requirements. They consist of a completely air-cooled supply unit and a compact laser head with an integrated vision system.

Send request

Fiber laser

Business Fiber TRIM

Laser trimmers differ from lasers for material marking in that they have beam generation adapted for trimming applications, an integrated image recognition system (AOI) and extended electrical interfaces via which the necessary measurement technology is connected.

Product

Applications

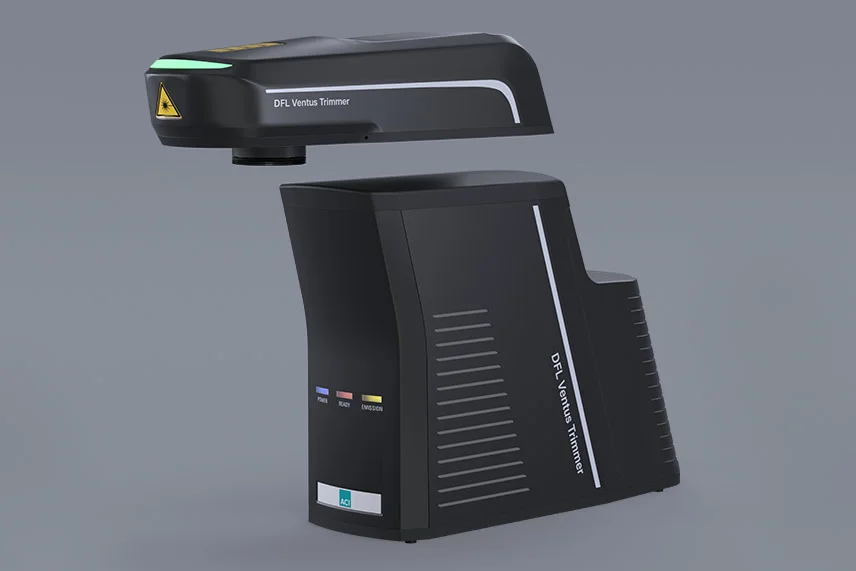

Laser trimmer DFL Ventus Marker TRIM from ACI with laser head and supply unit

Versatile applications and advantages of trimming lasers

Laser trimmers are used as manual workstations or integration components in automated systems. Our laser systems can be adapted to customer-specific requirements. For example, design variants in conjunction with a laser station such as the Workstation Professional or a rotary indexing table are possible. The manual workstations are ESD-compliant. All components are controlled via our in-house Magic Mark software.

ACI’s laser trimmers are characterized by a long service life of the systems, which reduces operating costs and increases reliability. The laser devices are low-maintenance, which maximizes uptime and reduces total cost of ownership. In addition, the systems are completely air-cooled, eliminating the need for additional coolants and increasing system efficiency. All our laser trimmers offer the highest power and pulse-to-pulse stability, resulting in consistent and precise results.

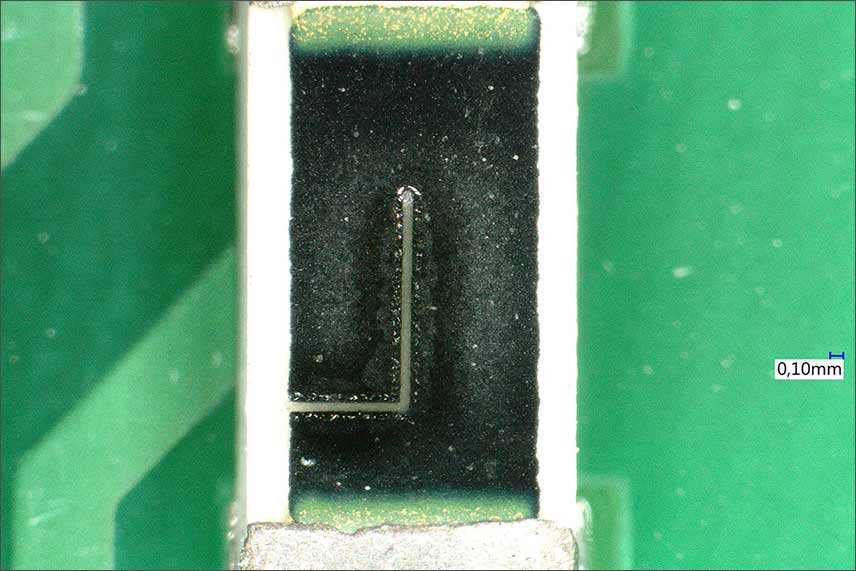

L-cut on an electrical resistor using laser trimming, which sits on a circuit board

L-cut on an electrical resistor using laser trimming, which sits on a circuit board in the magnification

Business Fiber TRIM

Applications

Resistive components are sometimes fine-tuned to the application directly in the circuits in which they are implemented. The exact conductance of the resistor is realized with the so-called passive adjustment. Functional parameters of a switching group are realized by means of active adjustment. The laser beam removes the resistor layer without damaging the ceramic base body, or the specific conductance is reduced by a targeted laser cut in the resistor material and the resistance value is increased.

This might interest you

L-cut on an electrical resistor using laser trimming

What is laser trimming?

Laser trimming is a method of adjusting resistors with a laser

Laser station

Turnkey complete solutions individually configurable

Blick in eine Fertigungslinie mit integriertem Beschriftungslaser

Customized solutions

Customized laser stations and integration solutions
