Workstation Classic

Workstation Classic is typically used for small to medium quantities and for processing smaller components. The compact laser station is equipped with an integrated, motorized Z-axis as standard, enabling laser marking of components of different heights.

In the special version as Workstation Classic XL, the laser station offers an extended working area and larger marking area if required.

Applications

Product brochure

Laserstation Workstation Classic mit Faserlaser DFL Ventus Marker und Rotationsachse

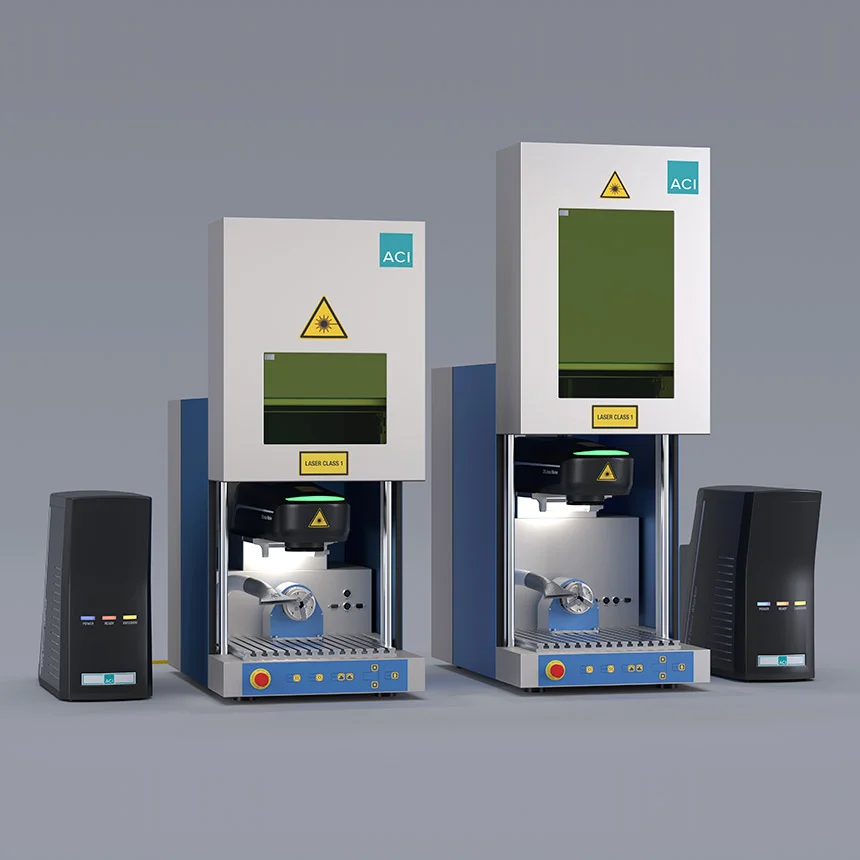

Laserstation Workstation Classic und XL mit Faserlaser der Business Fiber Serie und Rotationsachse

Technical data

	Workstation Classic	Workstation Classic XL
Usable mounting surface on T-slot table (w x d)	340 x 360 mm	340 x 360 mm
Z-axis travel	150 mm	270 mm
Laser safety class	1	1
Dimensions (l x w x h) *	760 x 450 x 650 mm	760 x 450 x 730 mm
Weight (excl. laser device)	45 kg	50 kg
Interface	USB	USB
Load capacity	25 kg	25 kg

* Specifications apply to the version with fiber lasers

Features

can be combined with all ACI lasers
integrated focus finder
motorized Z-axis
integrated control panel
large laser safety window
electric door
integrated work area lighting
scope for connecting an external extraction and filtration system
integrated membrane keypad
different marking field sizes according to the selected laser type and lens
XL variant for even more working space

Variant

In the Workstation Classic XL variant, the laser station offers a larger working area for larger components. In combination with a suitable laser lens, the larger working distance offers extended processing options. A generously dimensioned laser safety window makes it easier for the user to monitor and control the marking process.

Would you like advice?

Contact sales

Laserstation Workstation Classic und XL mit Faserlaser und Rotationsachse

Optional accessories

Rotation axis for uniform marking around the circumference of workpieces
Vision system (AOI, CPM) for camera-supported laser marking
Code and ID reading systems (code reader, tool reader)
Type plate handling system
Workpiece holders, e.g. prism device, changing device
External laser extraction with control line and extraction hose
Desktop or industrial PC

Software

The laser system is controlled using our in-house Magic Mark laser software. It enables the marking of workpieces with text, graphics, codes (DataMatrix codes, barcodes), serial numbers and logos. It can also be used to apply circumferential marking to rotationally symmetrical components without using an attachment. Intelligent rights management supports the creation of different operator groups. This allows the laser system to be adapted to the respective user requirements. Fully automatic operation with data exchange to various data sources is easily possible when used in automated production lines. The functions of Magic Mark can optionally be extended using plug-ins such as the code or script module.

Mehr zu Magic Mark

Symbolische Verpackung für die Lasersoftware Magic Mark V3

Safety

Workstation Classic is a turnkey system solution in accordance with laser protection class 1 and therefore guarantees maximum operator safety. No additional safety equipment is required.

As an accessory option, we offer you special extraction and filter systems for extracting the pollutants produced during laser processing. A corresponding connection for an external laser extraction system is available on the laser station.

The ergonomically optimized design of the table workstations and the practical functionality ensure a high level of user satisfaction.
