Workstation Professional

Workstation Professional is a highly flexible laser station that is equipped with an X- and Z-axis and a generously dimensioned work area as standard. The protective housing was developed for a wide range of requirements. It is particularly suitable for laser material processing of large quantities and large, heavy components or products. The laser station can be combined with all marking and trimming lasers and is therefore suitable for processing almost all materials.

Applications

Product brochure

Laserstation Workstation Professional mit Faserlaser DFL Ventus Marker der Serie Business Fiber

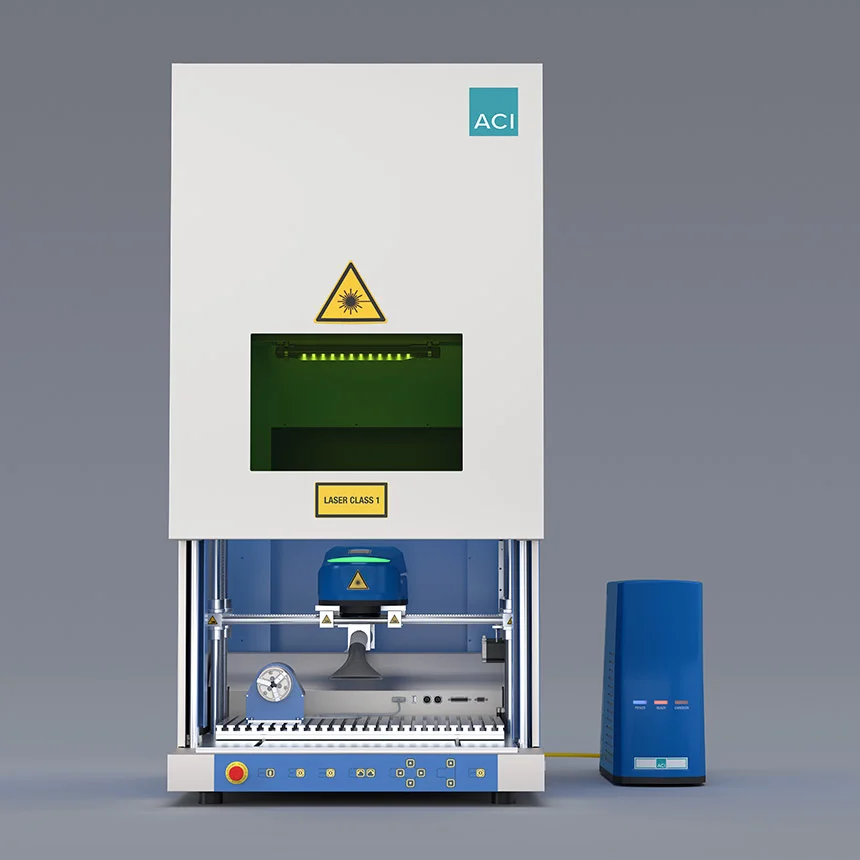

Laserstation Workstation Professional mit Faserlaser DFL Ventus Marker der Serie Economy Fiber

Technical data

	Workstation Professional	Workstation Professional XL
Usable mounting surface on T-slot table (w x d)	600 x 600 mm	800 x 800 mm
X-axis travel	400 mm	600 mm
Y-axis travel (optional)	240 mm	240 mm
Z-axis travel	440 mm	440 mm
Laser safety class	1	1
Dimensions (l x w x h)	1278 x 760 x 1072 mm	1278 x 960 x 1072 mm
Weight (excl. laser device)	150 kg	170 kg
Interface	USB	USB
Load capacity	100 kg	120 kg

Features

can be combined with all ACI lasers
focus finder
motorized X- and Z-axis
integrated control panel
large laser safety window
electric door
integrated work area lighting
connection for external extraction and filter system
integrated membrane keypad
different marking field sizes according to the selected laser type and lens
XL variant for even more working space

Variant

In addition to our standard products, we also offer a wide range of customized solutions thanks to our flexible Made in Germany production. At the request of our customers and depending on the project or application requirements, extensions to our laser stations are possible. This considerably multiplies the possible applications of our laser systems.

Do you have a project that you would like to discuss with us? Our technical sales team will be happy to advise you.

Contact sales

Laserstation Workstation Professional und XL mit Faserlaser der Business Fiber Serie

Optional accessories

Motorized Y-axis/ Y-table
Rotation axis for uniform marking around the circumference of workpieces
Vision system (AOI, CPM) for camera-supported laser marking
Code and ID reading systems (code reader, tool reader)
Type plate handling system
Workpiece holders, e.g. prism device, changing device
External laser extraction with control line and extraction hose
Desktop or industrial PC

Software

The laser system is controlled using our in-house Magic Mark laser software. It enables the marking of workpieces with text, graphics, codes (DataMatrix codes, barcodes), serial numbers and logos. It can also be used to apply circumferential marking to rotationally symmetrical components without using an attachment. Intelligent rights management supports the creation of different operator groups. This allows the laser system to be adapted to the respective user requirements. Fully automatic operation with data exchange to various data sources is easily possible when used in automated production lines. The functions of Magic Mark can optionally be extended using plug-ins such as the code or script module.

Mehr zu Magic Mark

Symbolische Verpackung für die Lasersoftware Magic Mark V3

Safety

Workstation Professional is a turnkey system solution in accordance with laser protection class 1 and therefore guarantees maximum operator safety. No additional safety equipment is required.

As an accessory option, we offer you special extraction and filter systems for extracting the pollutants produced during laser processing. A corresponding connection for an external laser extraction system is available on the laser station.

The ergonomically optimized design of the table workstations and the practical functionality ensure a high level of user satisfaction.
