Easily Create Micro QR Codes and Laser-Engrave them with Precision
21.07.2026
With the integration of the micro QR code, ACI is expanding the functionality of its in-house laser software, Magic Mark, to include a particularly space-saving code variant. This is ideal for applications where only very small marking areas are available, but where unique and machine-readable identification is required.
Micro QR Code Expands Laser Marking Options in Magic Mark
The new code type opens up additional possibilities, particularly in laser marking and laser engraving: serial numbers, component IDs, production codes, batch information, and compact traceability data can now be permanently and precisely applied even to the smallest surfaces.
Typical applications include, among others:
+ Delicate metal and plastic parts
+ Electronic components and printed circuit boards
+ Connectors

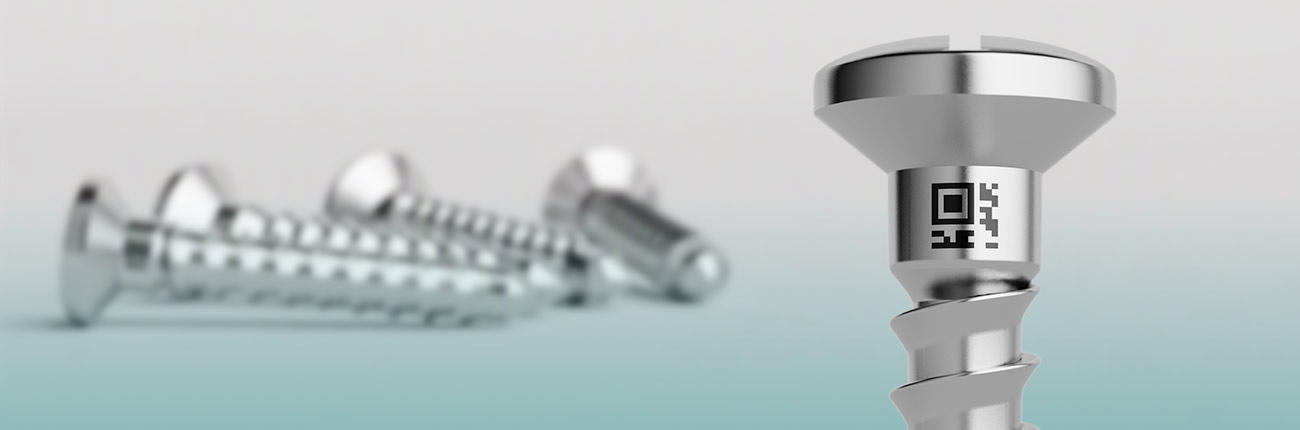

+ Medical Instruments
+ Precision components and tools
+ Small-quantity packaging
A Wide Range of Applications for Mini Encoders
Industries in which miniaturization, traceability, and permanent direct marking are critical stand to benefit the most. These include, for example, the electronics industry, medical technology, the automotive supply industry, precision engineering, aerospace, tool and mold making, and the watch and jewelry industry. Laser systems enable precise, permanent, and high-contrast marking even on the smallest surfaces. Therefore, the laser marking process is ideally suited for micro-QR codes.

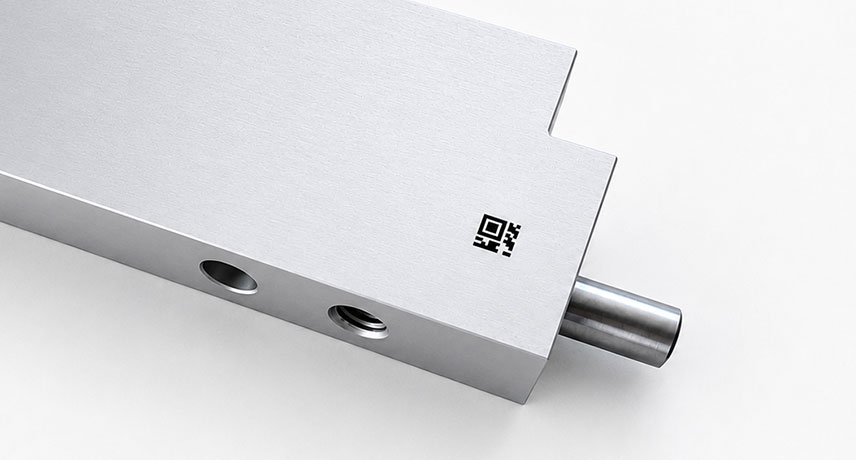

Micro QR code on an aluminum housing: The code consists of 11 x 11 modules, each module is 0.2 millimeters wide, and the total code size is 2.2 x 2.2 millimeters
The Micro QR Code complements Magic Mark’s existing code libraries, which already include DataMatrix codes, QR codes, barcodes, and PDF417. The Micro QR Code is an ideal solution, especially when only a limited amount of data is required but the available marking area is very small.

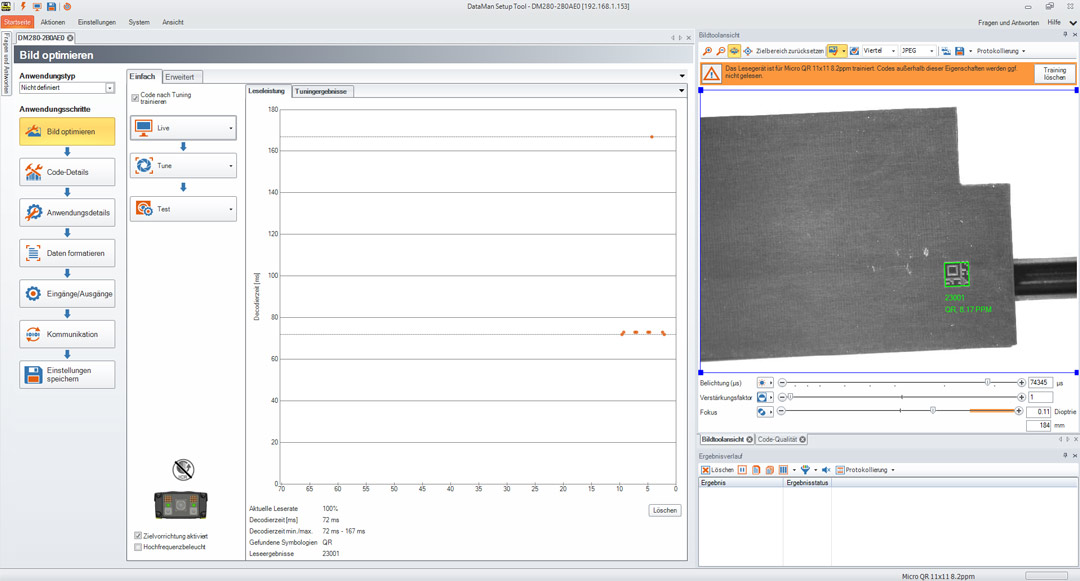

Fast reading results with a code-reading system; decoding time: 72 milliseconds;
example code content: production week (23) and 3-digit serial number (001)
As a result, the Magic Mark laser software offers users even greater flexibility in direct product marking—from individual part identification to reliable product traceability in automated production processes.
Advantages of micro-QR codes:
+ Traceability
+ Optimization of quality processes
+ Storing important information in a minimal amount of space
Screenshot from ACI’s Magic Mark laser software, showing a comparison of a DataMatrix code and a Micro-QR code with 5 and 30 digits, respectively
